The Ball Screw is a high-efficiency method of converting rotary motion to linear motion by using a recirculating ball mechanism between the screw shaft and the nut. Compared with a conventional sliding screw, the ball screw requires driving torque of one-third or less, making it ideal for saving drive motor power. A Ball Screw that achieves low noise, small torque fluctuations and long-term maintenance-free operation by using a ball cage. A Ball Screw using a screw shaft roll-formed to high accuracy. A Ball Screw using a screw shaft ground to high accuracy. For this model, screw shafts with a screw shaft outer diameter 4 to 25 mm and a lead 1 to 20 mm are available as the standard. This type of ball screw is mass produced by cutting the standard screw shafts of precision ball screws to regular lengths. Additional machining of the shaft ends can be performed easily. To meet various intended purposes. Precision Ball Screw with finished shaft ends. Combines with dedicated The nut bracket is standardized for standard Ball Screw assembly provided with finished shaft ends. This model is designed to be secured directly on the table using bolts. Since the height is low, it can be mounted on the table only using bolts. The Lock Nut for Ball Screws is capable of easily fastening the screw shaft and the bearing with high accuracy. A loosening prevention mechanism comprising a hexagonal socket-head setscrew and a set piece prevents the Lock Nut from loosening and ensures firm fastening. The Support unit comes in six types: Model EK, FK, EF, and FF, which are standardized for standard Ball Screw assembly provided with finished shaft end, and models BK and BF, which are standardized for ball screw general. The Support Unit on the fixed side contains a JIS Class 5-compliant angular bearing provided with an adjusted preload.
Products

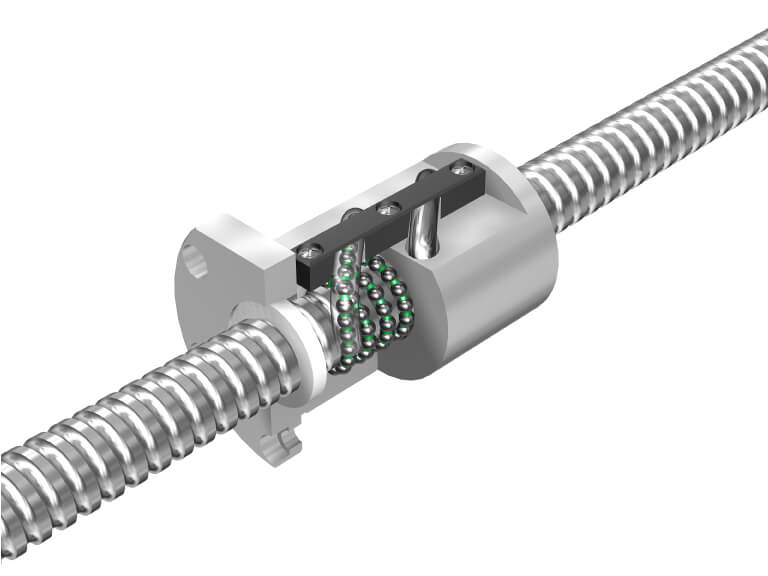

Precision, Caged Ball Screw
CAD
Service Life Calculation (Ball Screw)
Details / Product lineup
Model Number(s)
SBN, SBK, SDA, HBN, SBKH

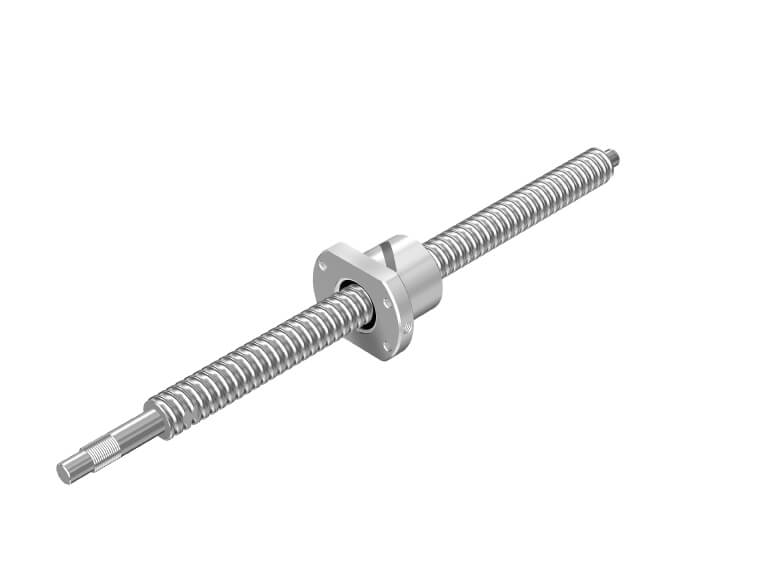

Rolled Ball Screw
CAD
Service Life Calculation (Ball Screw)
Details / Product lineup
Model Number(s)
JPF, BTK, MTF, BLK / WTF, CNF, BNT

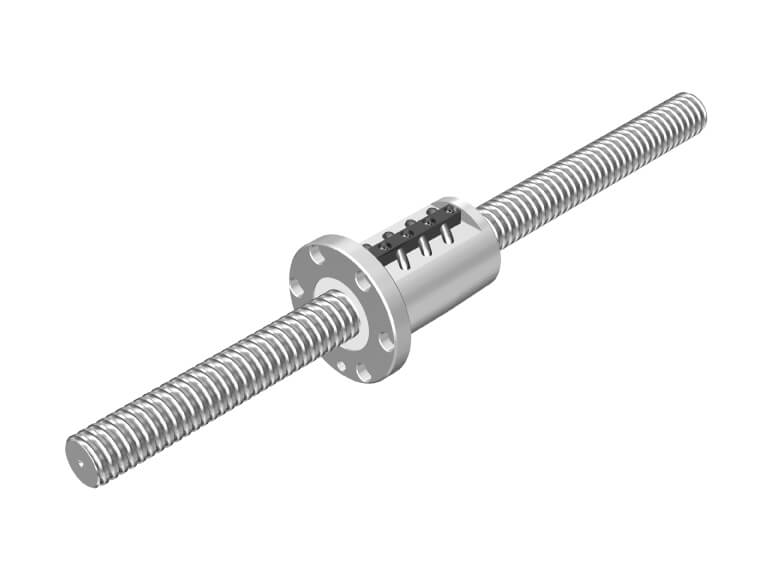

Precision Ball Screw
CAD
Service Life Calculation (Ball Screw)
Details / Product lineup
Model Number(s)
BIF, DIK, BNFN, DKN, BLW, BNF, DK, MDK, BLK/WGF, BNT, DIR, BLR

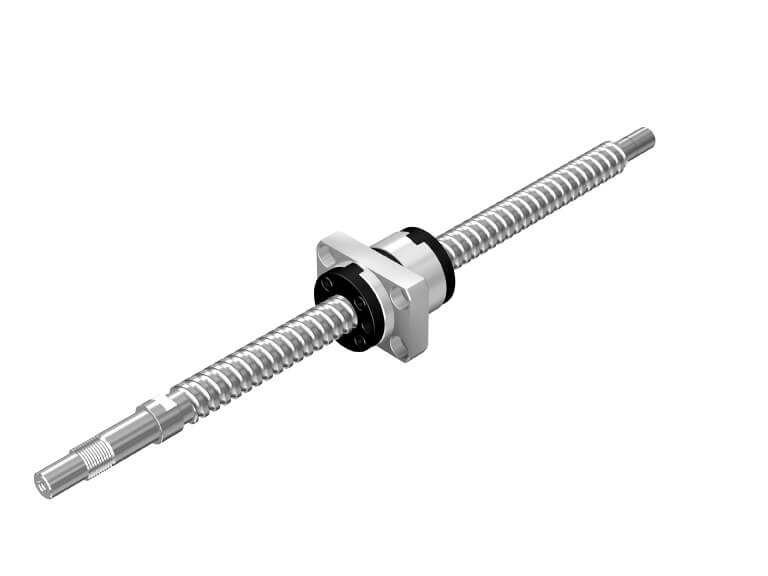

Finished Shaft Ends Model BNK
CAD
Service Life Calculation (Ball Screw)
Details / Product lineup

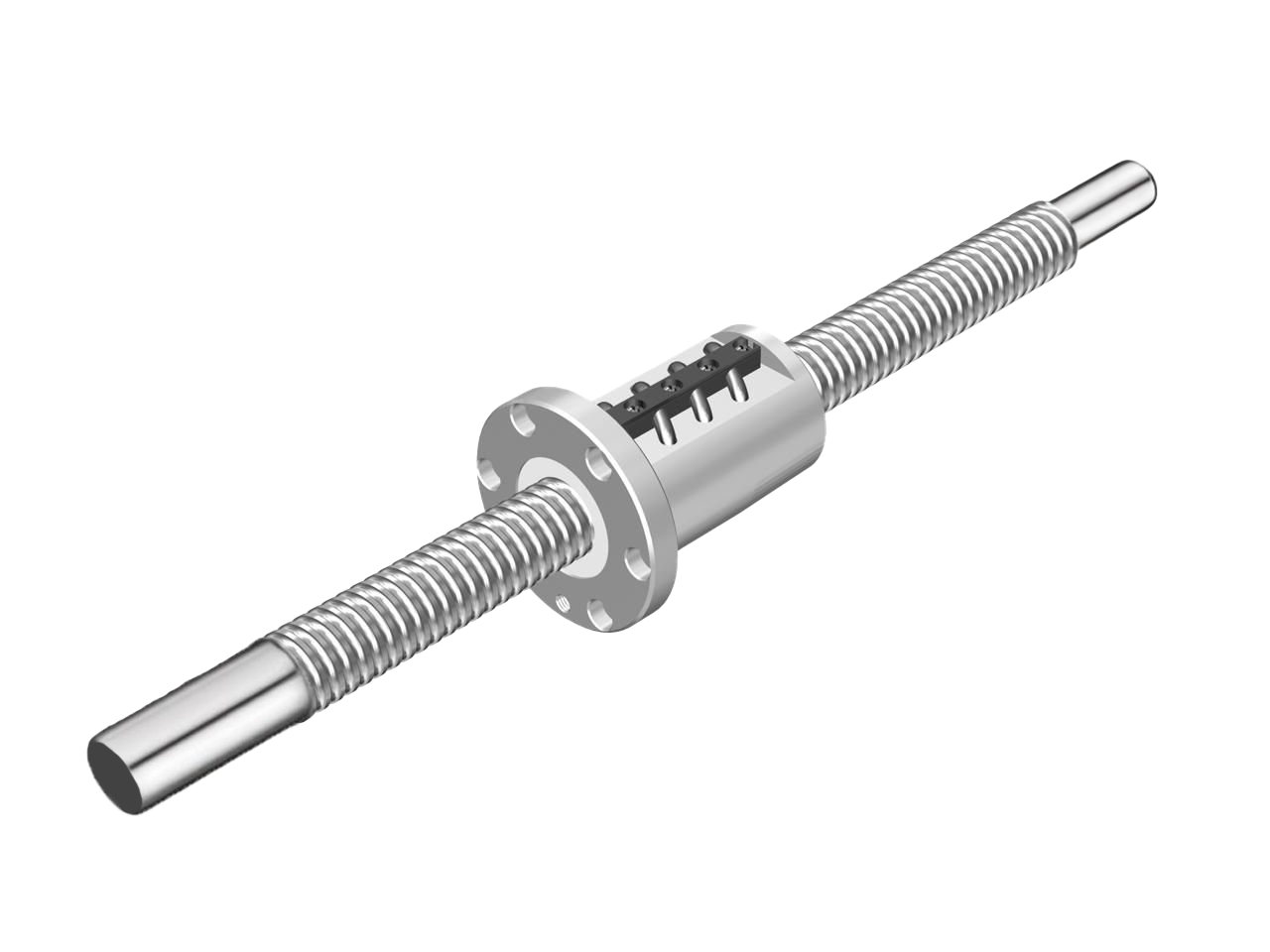

BIF Unfinished Shaft End
Details / Product lineup
Model Number(s)
BIF, MDK, MBF, BNF
Pre-Machined Ground Ball Screws
Details / Product lineup
support units to reduce design and assembly time.
Model Number(s)
SDA-VZ

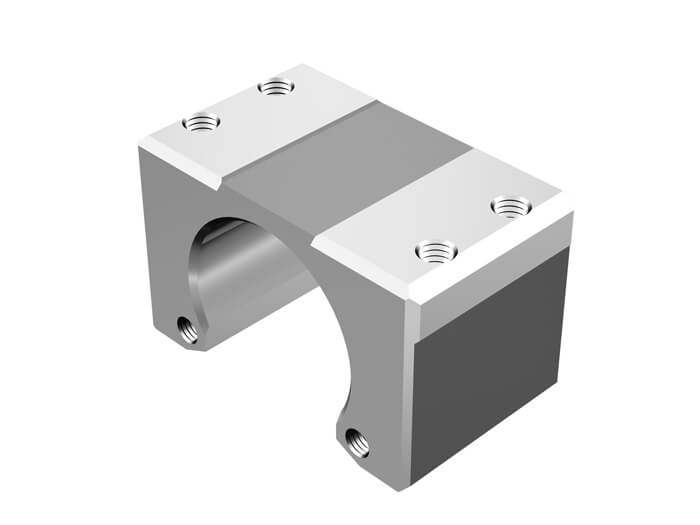

Nut Bracket
Details / Product lineup
Model Number(s)
MC

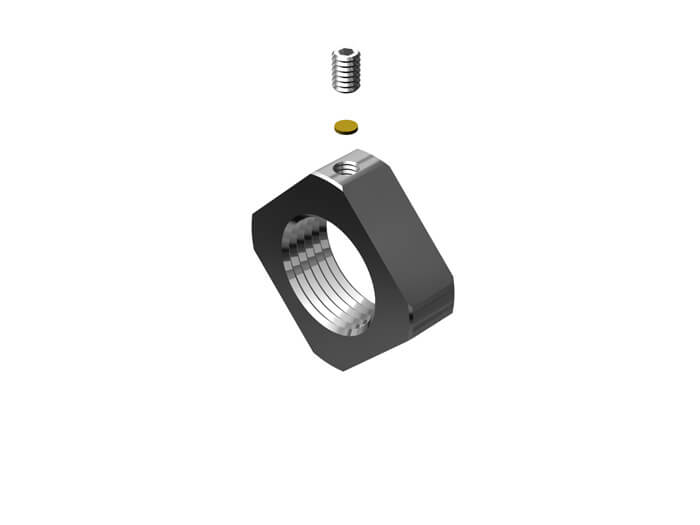

Lock Nut
Details / Product lineup
Model Number(s)
RN

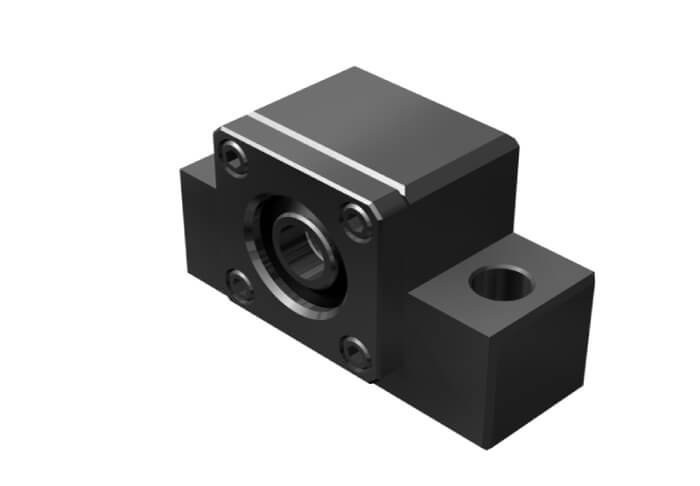

Support Unit
Details / Product lineup
Model Number(s)
EK, BK, FK, EF, BF, FF q
