The Linear Bush is a linear guide used in combination with a LM shaft that has a cylindrical shaft. This product makes linear movements with a minimum of frictional resistance to provide highly accurate and supple movement. With the Linear Bushing nut having the most accurate cylindrical shape, this type is widely used. The nut is integrated with a flange. This enables this model to be directly mounted onto the housing with bolts, thus achieving easy installation. Since the small, lightweight aluminum casing contains one unit of model LM and two units of model SL, it can easily be mounted simply by securing it with the table using bolts. An aluminum-made light fulcrum for securing an LM shaft. Since the LM shaft mounting section has a slit, the fulcrum is capable of firmly securing an LM shaft using bolts. THK manufacturers high quality, dedicated LM shafts for Linear Bushing model LM series.
Products

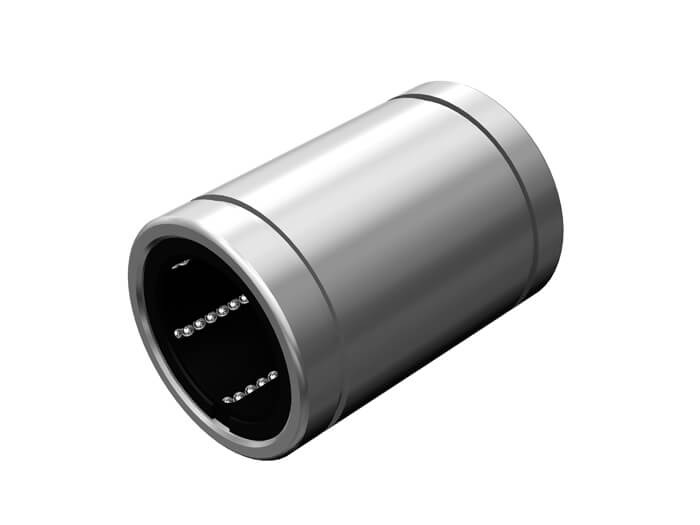

Linear Bushing
CAD
Details / Product lineup
Model Number(s)
LM, LM-GA, LM-MG, LME, LM-L

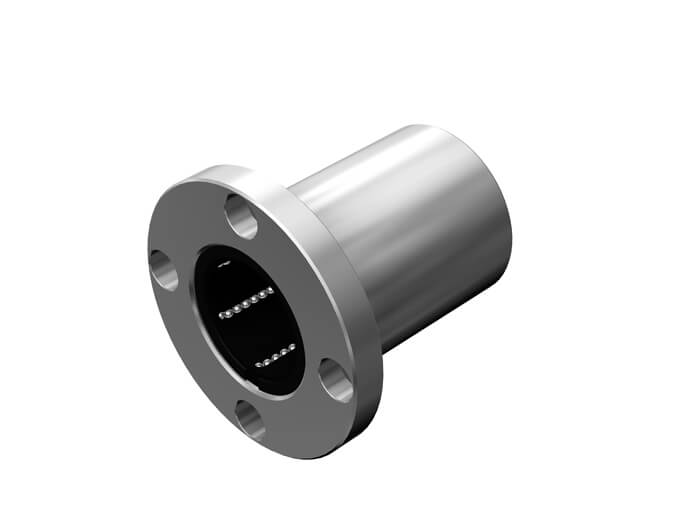

Linear Bushing Flanged Type
CAD
Details / Product lineup
Model Number(s)
LMF, LMF-M, LMK, LMK-M, LMF-L, LMF-ML, LMK-L, LMK-ML, LMH, LMH-L

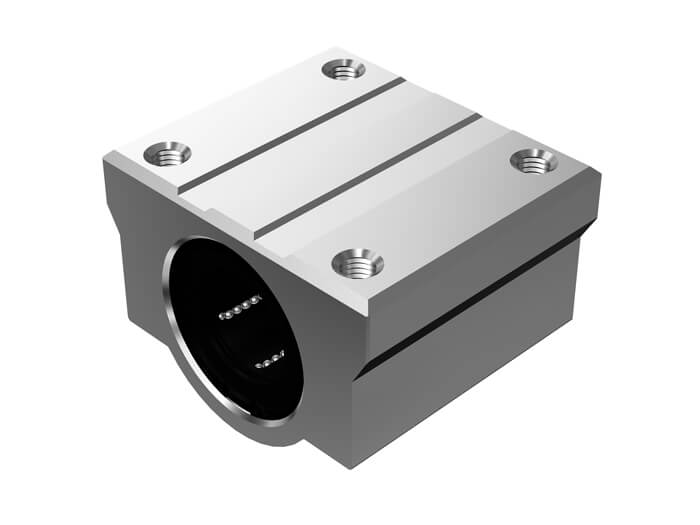

Linear Bushing
CAD
Details / Product lineup
Model Number(s)
SC, SL, SH, SH-L

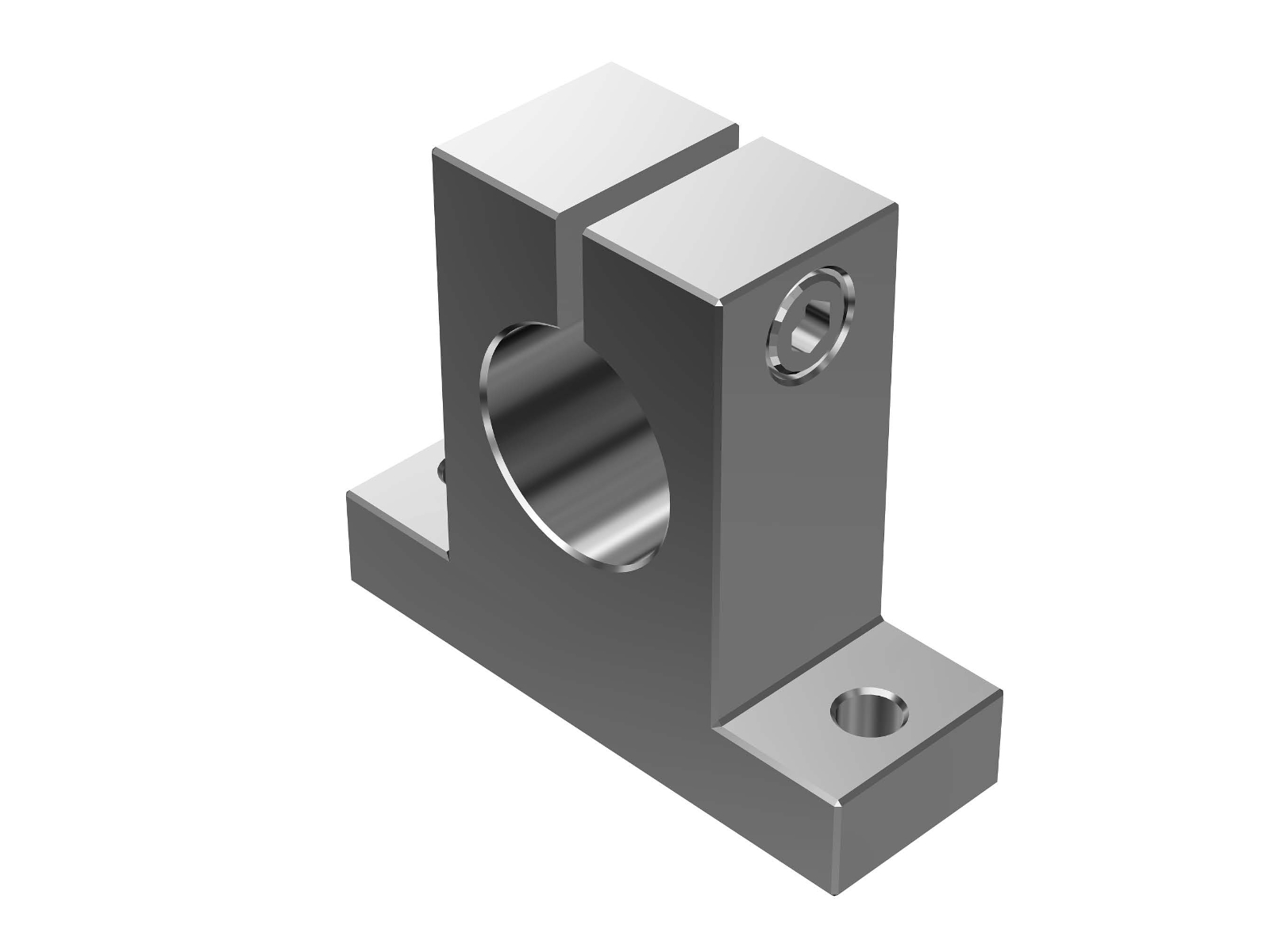

LM Shaft Support
CAD
Details / Product lineup
Model Number(s)
SK

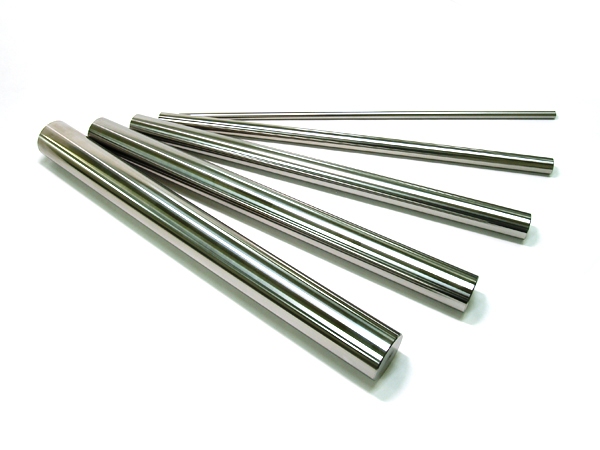

LM Shaft
CAD
Details / Product lineup
Model Number(s)
SF
